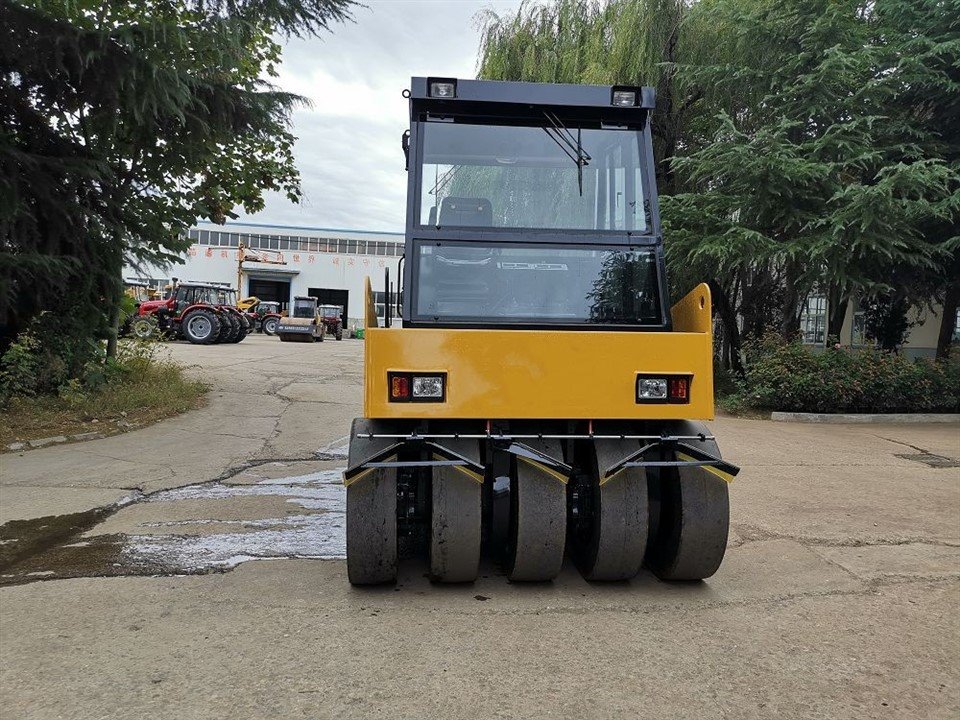

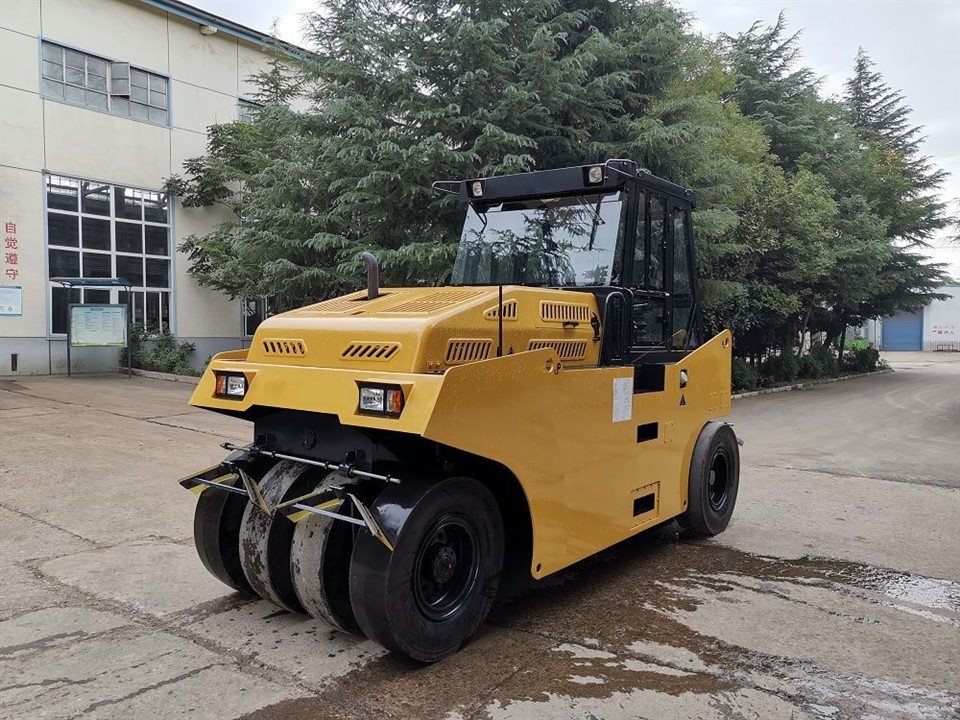

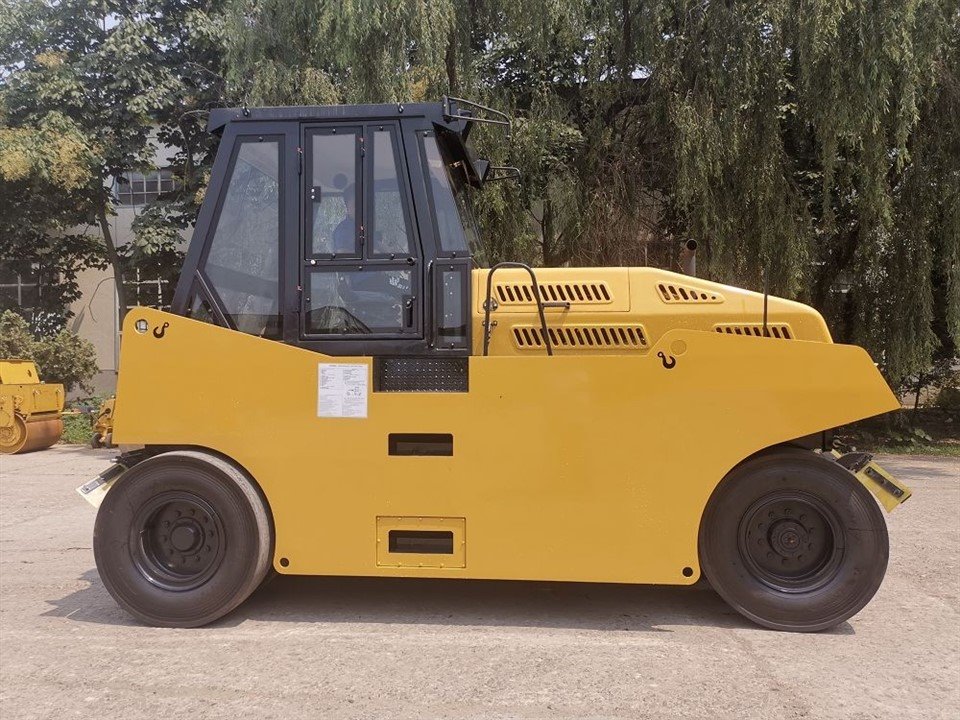

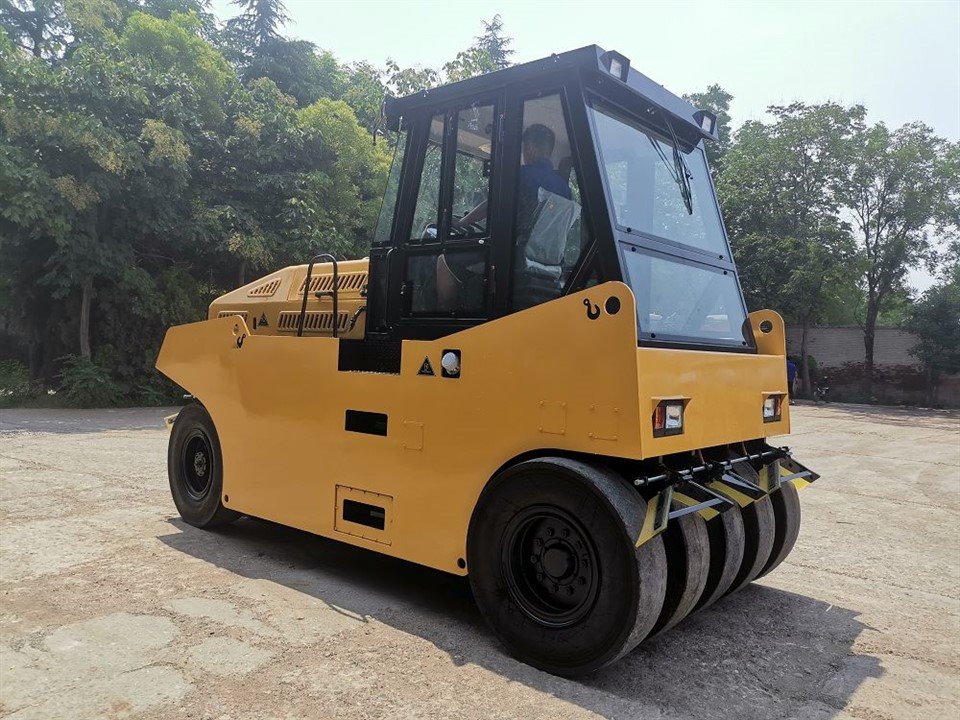

Pneumatic Tyre ROAD ROLLER
Qauv: CUMMINS4BT3.9
GROSS Hwj chim: 75kW @ 2200rpm
Ua haujlwm hnyav: 10000-16000kg
P1016 Pneumatic log tsheb cov menyuam series yog tsim los rau cov compact cohesive thiab tsis yog -cohesive cov ntaub ntawv, xws li asphalt pob zeb, cement los yog txiv qaub stabilized av, gravels, xuab zeb thiab av nplaum mixs, Rolling Cement Concrete (PCC) nyob rau hauv cov kev tsim kho tej yaam num, tshwj xeeb tshaj yog tsim nyog rau kev npaj ntawm cov kev kawm theem siab.
Cov yam ntxwv tseem ceeb
1. P1016 low gravitational center tsim kom muaj kev nyab xeeb thiab xis nyob.
2. Peb lub nrawm nrawm thiab ob qho kev hloov pauv rov qab. iav fiber reinforced yas txau lub thawv thiab mufti - txheej dej
3. lim kom ruaj ntseg ntawm lub cev.
4. Lub zog muaj zog. P1016 uas tau txais 4BT Cummins cav. yog haum rau txhua qhov chaw.
5. Pem hauv ntej log nrog tsis siv neeg kho cua sov qauv ua kom zoo dua compactness.
Main Technical parameters
|
Qauv |
P1016 |
|
Kev ua haujlwm loj |
10000-16000kg |
|
Max Travel ceev |
14.7 KM/h |
|
Tyre kom muaj nuj nqis (Pem hauv ntej + nram qab) |
4+5 |
|
Tyre seize |
11.0-20-16 |
|
Log rim seize |
8.00V-20 |
|
Yam tsawg kawg Turning radius |
7500 hli |
|
Rolling compaction dav |
22 80mm |
|
Hluav taws xob voltage |
24V |
|
Qib muaj peev xwm |
30% |
|
Zuag qhia tag nrho (LxWxH) |
4780x2280x3200mm |
|
Log puag |
3800mm |
|
Diesel cav fais fab |
75 Kw / 2200 rpm |
|
Diesel cav qauv |
CUMMINS4BT3.9 |
|
Roj tank peev xwm |
223L |
|
Hydraulic tank peev |
91L |
|
xaiv tau |
Qab ntug. |
